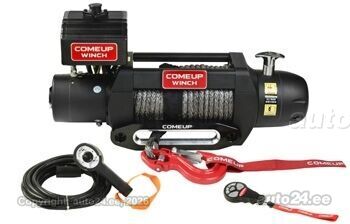

COMEUP AUTOMOTIVE WINCH Seal Gen2 9.5rs Vints

Sale

12V DC severe duty winch rated at 9,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor delivers superior torque output and faster line speed. A motor equipped with a thermal protection switch
16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degree increments.
Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
Both built-in digital two way wireless remote control and wired water-proof remote control.
A 12 strand construction synthetic rope coated to improve abrasion and has no water absorption.
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch.
Rated line pull: 4,309 kg / 9,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 159:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Both built-in digital signal two way wireless remote control and waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Synthetic rope
Rope size: 10 mm x 30.5 m (3/8” x 100’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting : Foot forward or foot down mounting workable
Finish : Matte black powder-coated
Winch weight (including rope) : 28.5 kg / 62.8 lb
Gross weight : 40 kg / 88 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
