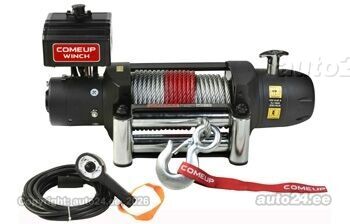

COMEUP AUTOMOTIVE WINCH Seal Gen2 12.5 12V Vints

Sale

12V DC severe duty winch rated at 12,500 lb pulling meets or exceeds your expectations.
Heavy duty series wound motor equipped with thermal switch alters when motor over-heating.
16 equally positioned pin holes with an ergonomic T-handle make it possible to reposition in 22.5 degree increments.
Water-proof remote control with thermometric LED indicator w/5 m cord
Tough aluminum die cast housings withstand strength of 2.0 x rated load of winch
Part number: PN 295730
Rated line pull: 5,670 kg / 12,500 lb single line
Motor: 3,730 w / 5.0 hp 12V series wound
Gear ratio: 3-stage planetary 225:1
Clutch (freespooling): Rotating ring gear
Brake (outside the drum): Automatic, full load CBS (Cone Brake Structure)
Winch construction: Aluminum die cast housings with steel drum
Drum size: 63.5 mm x 227L mm (2.5” x 8.9”L)
Control: Waterproof remote with thermometric indicator LED w/ 5 m (17') cord
Rope type: Galvanized aircraft A7 x19 wire rope
Rope size: 9.5 mm x 25 m (3/8” x 82’)
Mounting bolt pattern: 254 mm x 114 mm (10” x 4.5”)
Mounting: Foot forward mounting only
Finish: Matte black powder-coated
Winch weight (including rope) : 37.7 kg / 83.1 lb
Gross weight : 53 kg / 117 lb
Box dimension, (L x D x H) : 682 x 209 x 430 mm (26.9" x 8.2" x 16.9")
