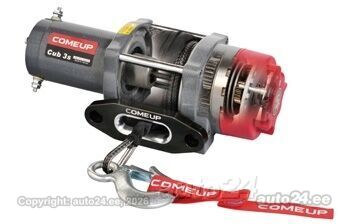

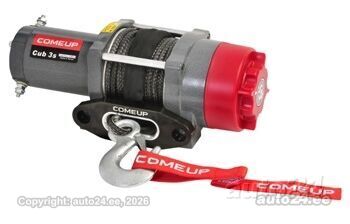

ATV/UTV COMEUP CUB 3S 12V Vints

Sale

3,000 lb (1,361 kg) line pull
Power in and power out
Winch drum centred avoids the interference of rope and provides streamlined appearance
Mechanical load holding and dynamic brake for 100% braking
High efficiency, low amp draw and sealed permanent magnet motor
Full metal 3 stage planetary gear train for greater pulling force
Sliding pin and ring gear clutch for rapid synthetic rope payout
Weather sealed contactor gives better water proof and lower amp. draw
Part number: PN 129300
Rated line pull: 1,361 kg (3,000 lb) single line
Motor: 800 w / 1.0 hp 12V permanent magnet
Gear train: 3-stage planetary 138.5:1
Clutch (freespooling): Sliding pin and ring gear
Brake: Mechanical & dynamic
Winch construction: Aluminum die cast housings and drum
Drum size: 55 x 75 mm (2.2” x 3”)
Control: Handlebar rocker switch
Rope type: Synthetic rope
Rope size: 4.8 mm x 15.2 m (3/16” x 50’)
Mounting bolt pattern: 76 x 124 mm (3” x 4.9”)
Winch weight (including rope) : 7.2 kg / 15.9 lb
Gross weight : 11.5 kg / 25.3 lb
Box dimension, (L x D x H) : 349 x 331 x 144 mm (13.7" x 13" x 5.7")
