Mobile Diesel Generator BD12500SE, 9.5 kW

The BD12500SE mobile diesel generator is a powerful and economical source of electricity for both household and professional use. With a continuous power output of 9.5 kW and dual voltage options (230 V / 400 V), it is ideal for construction sites, events, or as a backup power supply for homes. User-friendly controls, an electronic start system, built-in displays, and a preheating function ensure reliable operation even in harsh weather conditions.

Official warranty
Technical support
Delivery service
Wide range of diagnostic and service equipment

BalticDiag Latvia – extensive market experience
More details: www.balticdiag.lv

Product page:
https://balticdiag.lv/en/mobile-diesel-generator-bd12500se-9-5-kw

Excellent value for money

Features:

Electronic start system
Selectable output voltage 230 V or 400 V

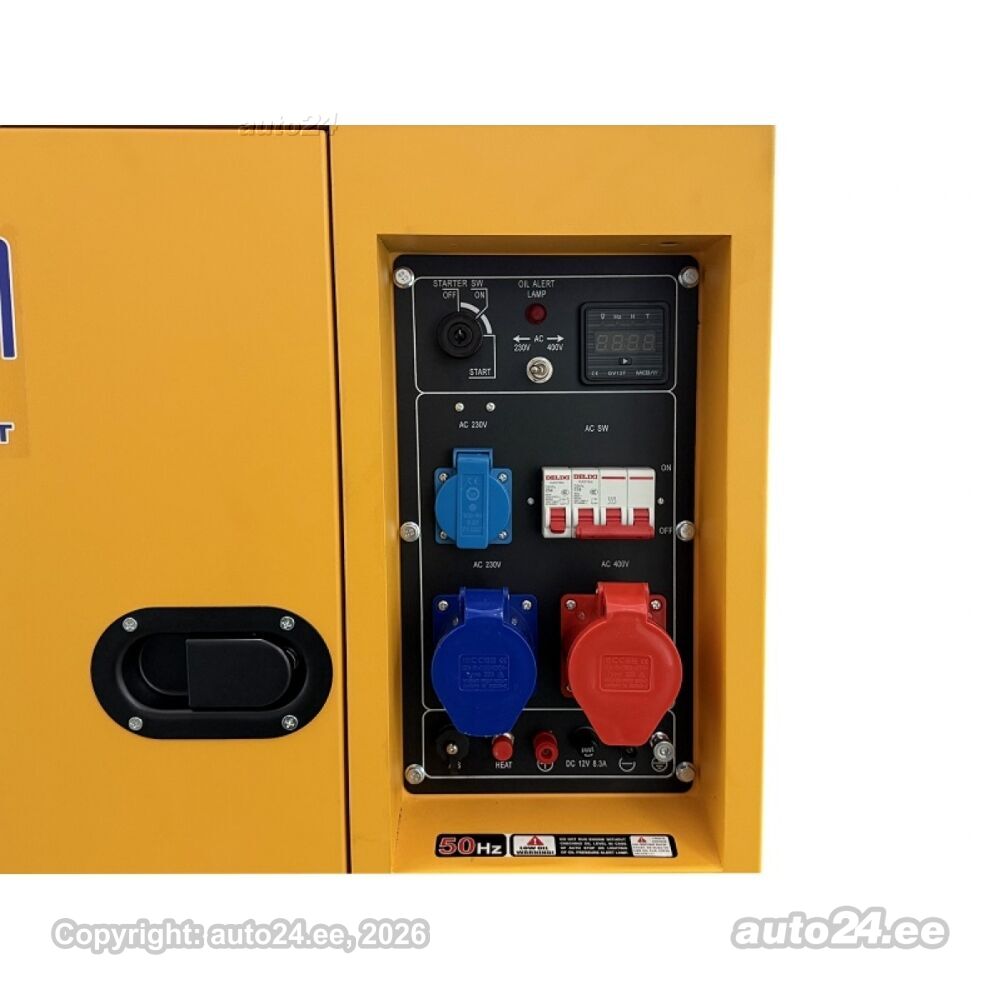

Digital information display
Preheating function for cold weather
Compatible with automatic transfer switch (ATS)
Rubber wheels for easy transportation
Built-in automatic circuit breakers
High-quality synchronous generator with AVR system
Uses engine oil 10W/30 SAE

Technical Specifications:

Maximum power (standby mode): 10 kW / 12.5 kVA
Rated power (prime mode): 9.5 kW / 11.9 kVA
Voltage: 230 / 400 V
Frequency: 50 Hz
Phases: 3-phase (selectable)
AVR accuracy: 0.5%
DC output: 12 V / 8.3 A
Noiыe level (7 m): 70–73 dB
Cooling system: air-cooled
Cylinders: 1
Stroke cycle: 4-stroke
Speed: 3000 rpm
Engine model: 1103F
Displacement: 734 cc
Bore x stroke: 103 x 88 mm
Fuel consumption (100%): 2.66 l/h
Fuel consumption (75%): 1.988 l/h
Fuel consumption (50%): 1.33 l/h
Fuel tank capacity: 30 l
Operating time: 9.7 h
Oil capacity: 1.95 l
Operating temperature: –15 °C to +40 °C
Battery capacity: 36 Ah
Output terminals: 2 pcs
Protection class: IP23
Circuit breakers: 1-phase – 50 A, 3-phase – 16 A
Package dimensions: 1115 x 650 x 930 mm
Weight: 228 kg

Special price: EUR 1450.00 excl. VAT

Package includes:

Basic service tools

Power plugs – 2 pcs

Start keys – 2 pcs

User manual

Generator wheels – 4 pcs

For more information, feel free to contact us anytime – we will be happy to assist you.
