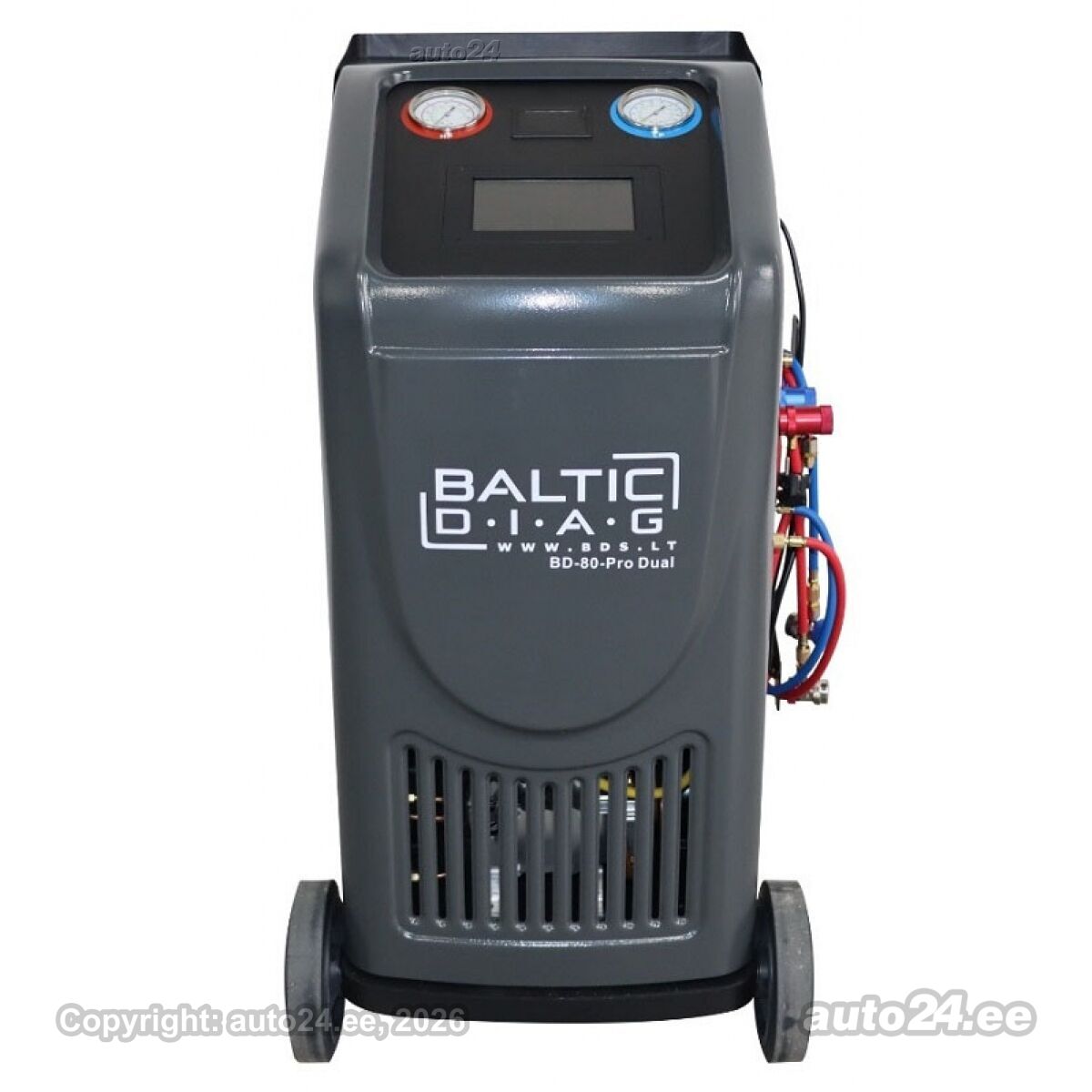

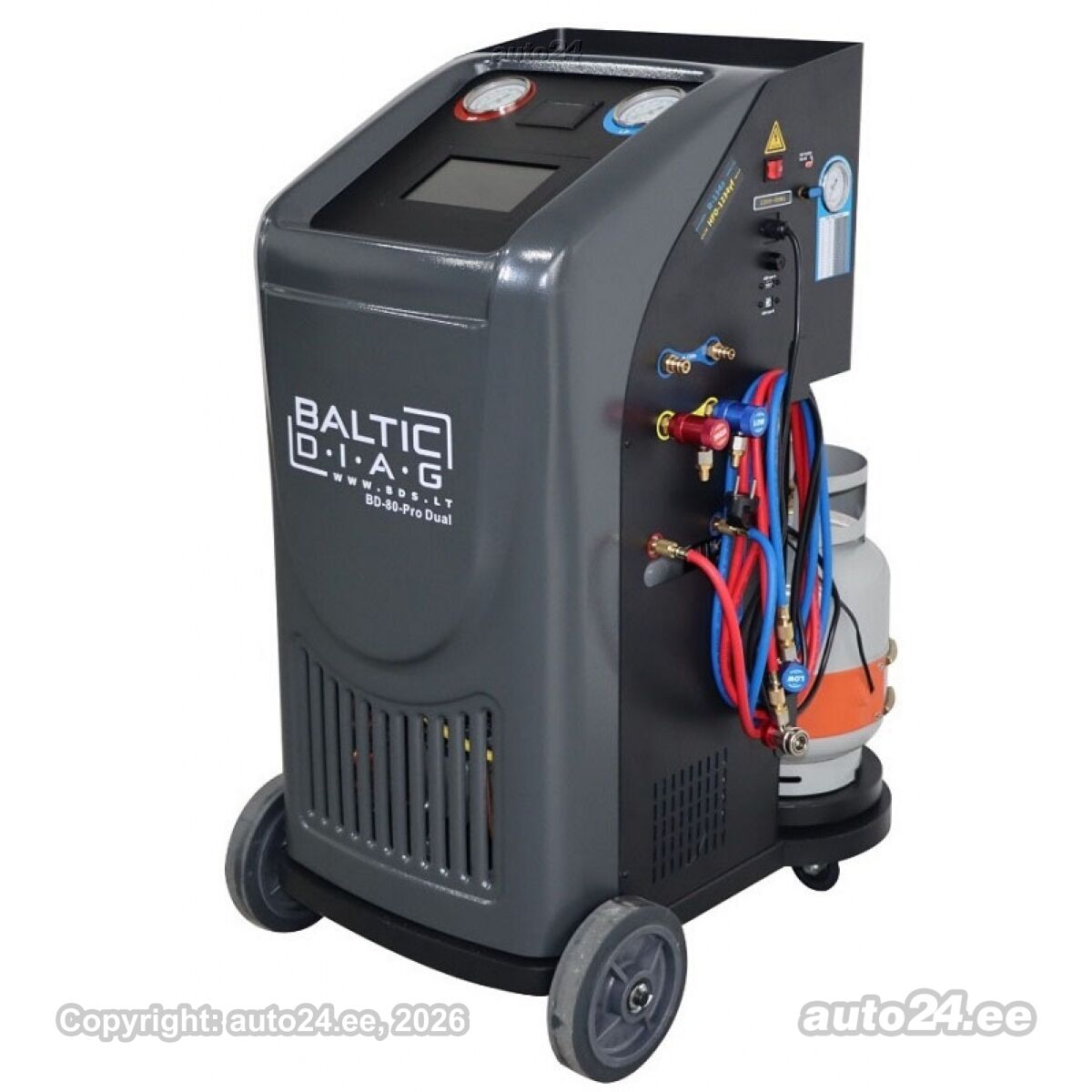

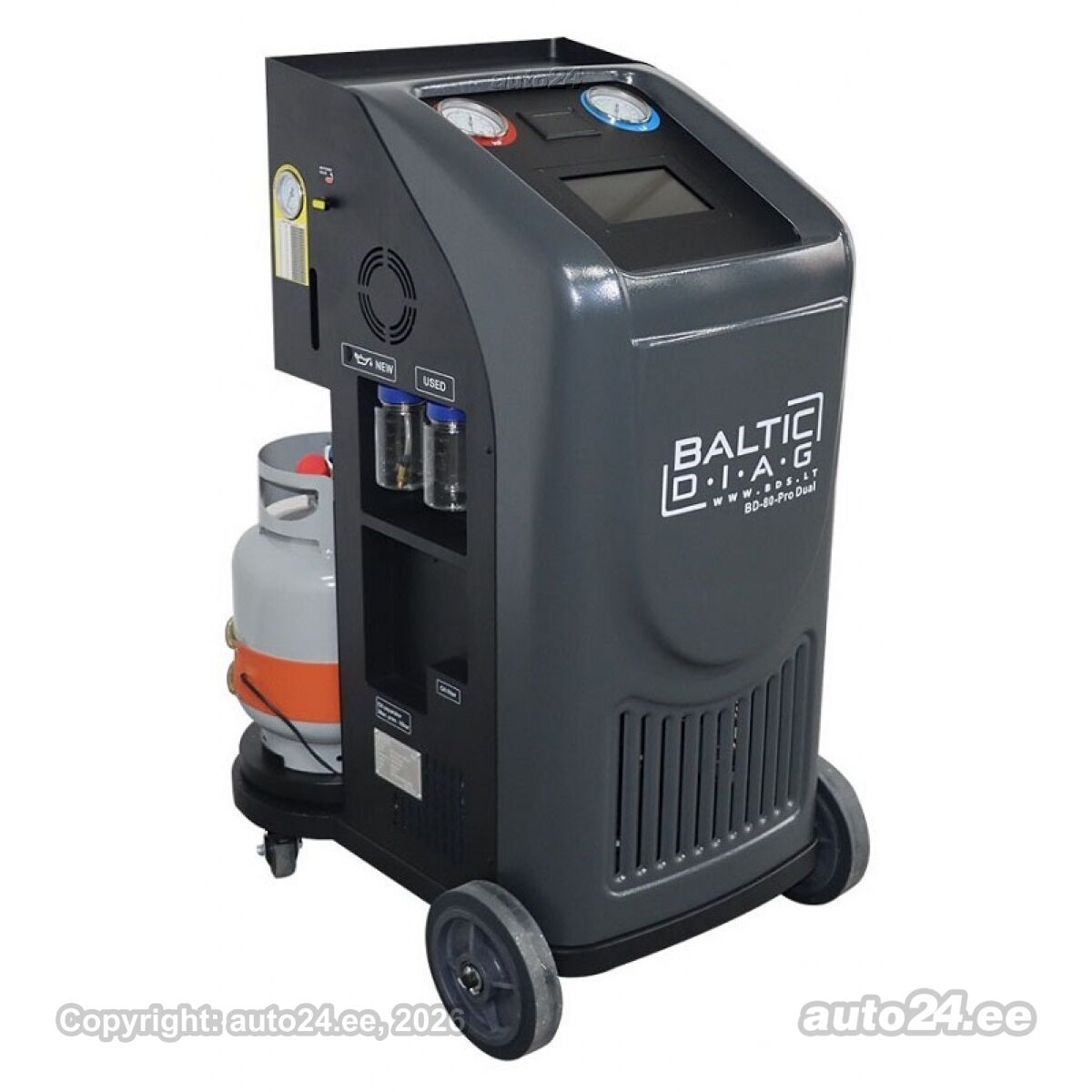

BD-80 PRO Dual Automatic Air Conditioning Service Station
Warranty: 12 months

A next-generation automatic service station for automotive air conditioning systems, capable of working with two refrigerants: R-134a and R-1234yf. This air conditioning service station includes all essential functions and features required for professional servicing of refrigerant systems using R-134a and R-1234yf. The station automatically performs refrigerant recovery, vacuuming, leak testing, charging, and oil extraction.

It includes an integrated database in Lithuanian for servicing the most popular car brands.

Full control of the A/C station is available in Lithuanian, as well as over 20 other languages: English, Russian, Polish, Estonian, German, French, Spanish, and more.

The database includes several thousand vehicle models up to 2017. Users can also install their own custom vehicle database.

The high- and low-pressure hoses are 3 meters long, making the unit highly mobile and easy to use.

A simple but reliable connection system ensures safe operation during processes such as refrigerant recovery and recycling, vacuuming, leak testing, and pressure testing.

The station includes a built-in printer, allowing you to print results after completing the service.

Oil recovery: automatic oil extraction, as well as separation and system cleaning with easy recovery functions.

The station is equipped with large rear wheels and two smaller lockable front wheels, providing mobility and comfort when working on uneven surfaces.

The vacuum pump is easily accessible for convenient oil replacement.

Suitable not only for passenger cars but also for heavy-duty vehicles.

When used with additional equipment, this A/C service station can also operate with electric and hybrid vehicles.

Functions and Features:
Operating mode: Automatic
Refrigerant recovery: Automatic
Refrigerant charging: Automatic
Oil removal: Automatic
Vacuuming: Automatic
Leak test: Automatic
UV injection: Yes
Vacuum leak test: Yes
Condenser and cooling fan: Included
Printer: Available
Flushing function: Yes
Hybrid A/C system support: No
Hose cleaning program
Built-in electronic scales for oil tanks
Easy calibration of electronic scales
Technical Specifications:
Refrigerant type: R-134a and R-1234yf
Manual control valves: 2
Display: 4.3-inch color LCD
Refrigerant tank capacity: 10 kg
Accuracy: 10 g
Refrigerant charging speed: 2000 g/min
Recovery speed: 250 g/min
HP gauge range: -1 to 30 bar
LP gauge range: -1 to 16 bar
Recovery efficiency: ≥95%
Compressor power: 3/8 HP
Vacuum pump flow rate: 120 L/min
Number of oil bottles: 2 pcs
New oil bottle capacity: 250 ml
Used oil bottle capacity: 400 ml
Measurement accuracy (new/used oil/UV): 5 g
Power supply: 220V, 50/60 Hz
Power consumption: 280 W
Max pressure: 20 bar
Dimensions: 650 × 760 × 1055 mm

Official warranty and technical support from the authorized Baltic representative BalticDiag (Latvian branch: BalticDiag Latvija).
