| Product is | new |
| Manual | ![]() |
| Warranty | ![]() |
| Price | EUR 1100 / piece VAT 0% |


Suits all vehicles
| Designation / description | |
|---|---|
| Designation | 2-postiline tõstuk BD-4000M3 |
| Description | Two-post lift with mechanical arm locking and 2 + 3 stage arms |

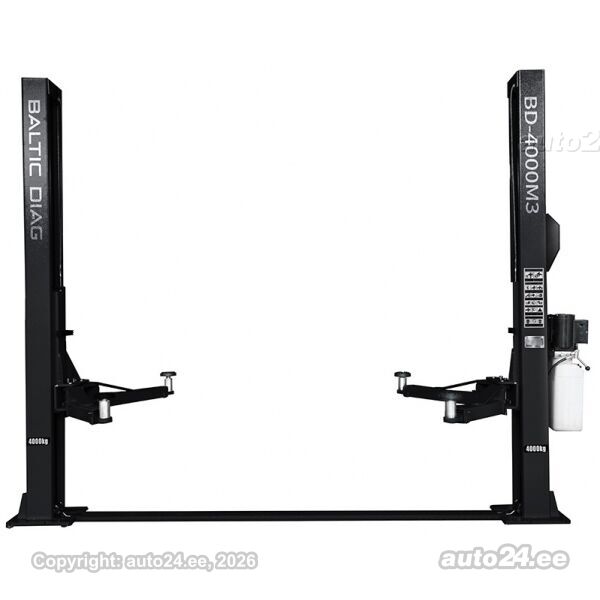

Two-post lift with mechanical arm locking and 2 + 3 stage arms, 4T BD-4000M3
Warranty period – 24 months
The BD-4000M3 is a strong and reliable two-post lift designed for servicing passenger cars and light commercial vehicles. The columns are synchronized at the bottom, ensuring stable lifting even under intensive use. The structure is equipped with hydraulic cylinders manufactured according to ANSI standards, self-lubricating UHMW polyethylene guides, and brass bushings, which reduce maintenance requirements. The 2- and 3-stage arms can be used in both symmetric and asymmetric configurations, and the mechanical locking of the arms on both sides provides additional safety.
Features:
Bottom column synchronization
Manual mechanical arm unlocking on both sides
Durable design with reduced component wear
Self-lubricating UHMW polyethylene guides and brass bushings for long service life
Two-point unlocking mechanism with double safety system
Standard high symmetric arms suitable for symmetric or asymmetric use
Reinforced arm carriage
CE certificate, compliant with EU safety standards
Technical specifications:
Lifting capacity: 4000 kg
Lifting time: 55 seconds
Lifting height: 1900 mm
Minimum pad height: 100 mm
Long arm length (2-stage): 900–1450 mm
Short arm length (3-stage): 670–1140 mm
Overall width: 3300 mm
Distance between columns: 2800 mm
Maximum vehicle width: 2500 mm
Lift weight: 504 kg
Electric motor: 2.2 kW
Power supply: 380 V / 50 Hz / 3-phase or 230 V / 50 Hz / 1-phase
Color: RAL7021
Official warranty and technical support provided by the official Baltic representative — BalticDiag (Latvian branch BalticDiag Latvija).
For more detailed information, you can call us anytime — we will be happy to advise you.
